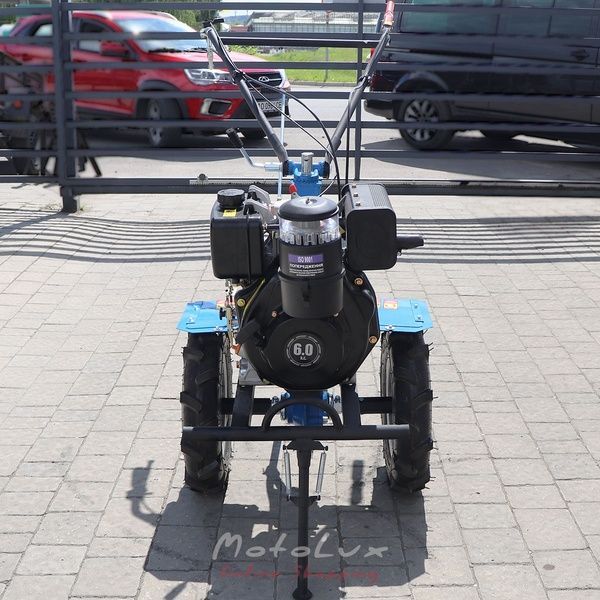

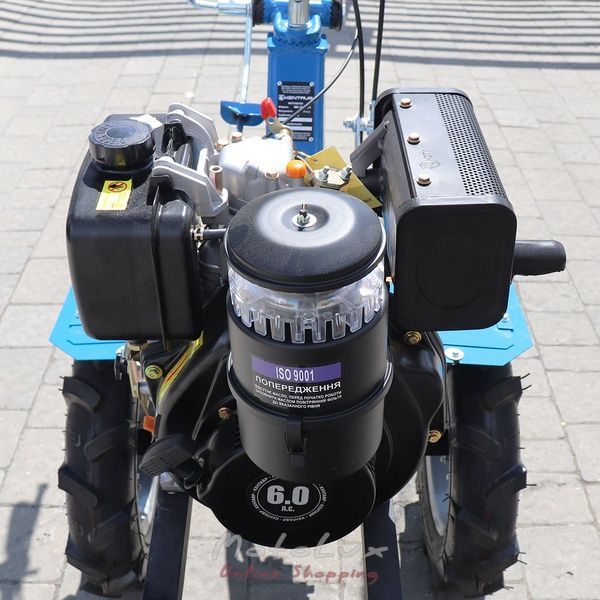

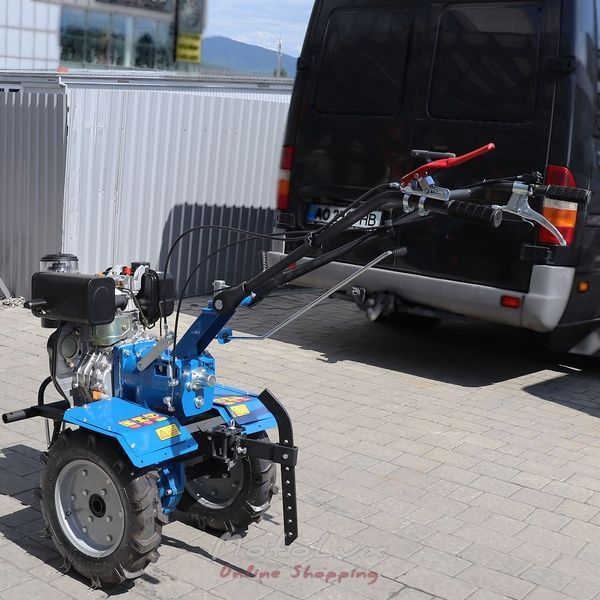

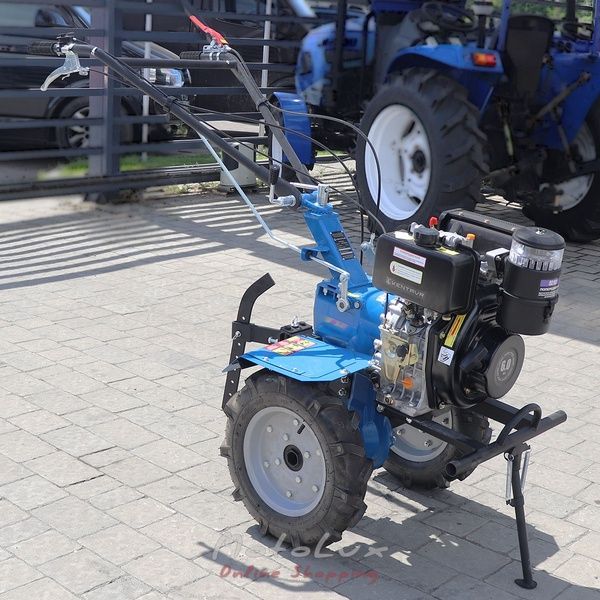

Kentavr MB2060D-4 Walk-Benind Tractor Characteristics
| Power output | 6 h.p. |
|---|---|
| Power output, kWt | 4.4 |
| Engine cooling | Air |
| Max. cultivation depth, mm | 200 |
| Oil volume in the engine crankcase, l | 1.1 |
| Oil volume in the gearbox housing, l | 2.6 |
| Processing width, mm | 1140 |
| Adjusting the cultivation width | Three adjustments |
| Piston stroke, mm | 62 |
| Number of gears backwards | 1 |
| Maximum crankshaft speed, rpm | 3000 |
| Engine brand | DD 178F |
| Cylinder diameter, mm | 78 |
| Engine type | Diesel |
| Launch type | Manual starter |
| Engine displacement, cubic cm | 296 |
| Drive unit | Straight through multi-plate clutch |
| Transport wheels | 4.00-10 |
| Fuel tank volume, l | 3.5 |
| Min. cultivation depth, mm | 150 |
| Set | + Milling cutter |
| Number of gears forward | 2 |
| Clutch type | Multi-disc, oil bath |
| Transmission | Gear reducer |
| Fuel consumption, l / kW * hour | 0.29 |
| Engine cycle | 4-stroke |
| Curb weight, kg | 113 |
| ADDITIONALLY | |
| Manufacturer | Kentavr |
| Colour | Blue |
| Features: | Air filter with cyclone; New type of safe clutch; Reverse lever lock; Designed for processing areas up to 0.9 hectares; Reduced weight; The width of the cutter is 620, 880, 1140 mm; Number of tillers sections 8 = (1 + 1 + 2) + (2 + 1 + 1) pcs. |
| Equipment | Complete with walk-behind tractor, cutter and wheels. |
| Homeland of the brand | Ukraine |
| Manufacturer country | China |
| Warranty | 12 months |
| Additionally | Product specifications and equipment may be changed by the manufacturer without notice. |
| DIMENSIONS | |
| Height, mm | 750 |
| Depth mm | 1450 |
| Width, mm | 1140 |
| Weight, kg | 113 |
| Packaged weight, kg | 113 |
